Centrifuge: Principle, Parts, Types, and Applications

 Centrifuge: Principle, Parts, Types, and Applications

A centrifuge is a vital instrument in scientific laboratories, used to separate components of a mixture based on their density using centrifugal force. Whether for clinical diagnostics, molecular biology, pharmaceutical manufacturing, or environmental studies, centrifuges provide a rapid and effective means to isolate biological materials, particles, or macromolecules.

---

Principle of Centrifuge

Centrifugation works on the principle of centrifugal force, where particles in suspension are separated under the influence of high-speed rotation. The denser components move outward (radially away from the axis of rotation), while lighter components remain closer to the center.

The separation depends on:

• Relative Centrifugal Force (RCF):

  $$RCF = 1.118 \times 10^{-5} \times r \times (RPM)^2$$

  where r is the radius (in cm), and RPM is revolutions per minute.

• Sedimentation Rate: Governed by particle size, shape, density, and viscosity of the surrounding medium.

---

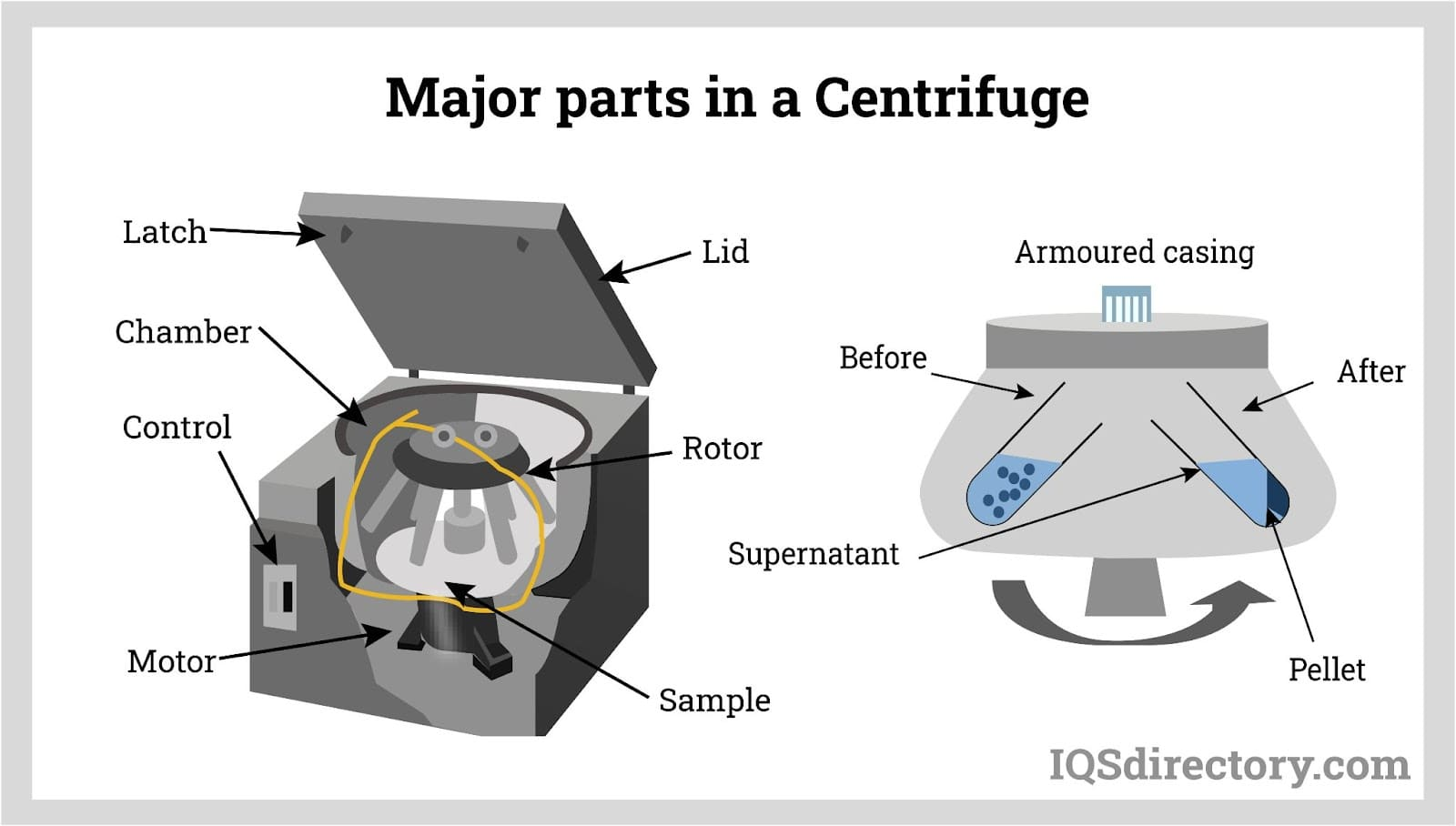

Parts of a Centrifuge

1. Rotor: Holds the tubes and spins during centrifugation. Can be fixed-angle, swinging-bucket, or vertical.

2. Motor: Powers the rotor to rotate at set speeds.

3. Drive Shaft: Connects the rotor to the motor.

4. Centrifuge Chamber: Enclosed area where the rotor spins; may include insulation or cooling.

5. Control Panel: Allows setting of speed, time, temperature, and acceleration/deceleration profiles.

6. Lid with Safety Interlock: Prevents operation when open, ensuring user safety.

7. Cooling System (in refrigerated models): Maintains sample temperature, often adjustable between –20°C to +40°C.

---

Types of Centrifuges (with Detailed Description)

1. Microcentrifuge

• Speed Range: Up to 15,000 RPM

• Volume Capacity: 0.2 to 2.0 mL tubes

• Applications: DNA/RNA extraction, PCR product purification, mini-prep protocols.

• Features: Compact design, fixed-angle rotor, usually benchtop, often non-refrigerated.

2. Clinical Centrifuge

• Speed Range: 3,000–5,000 RPM

• Volume Capacity: 5–15 mL tubes

• Applications: Separation of serum, plasma, or urine sediments in diagnostic labs.

• Features: Simple design, easy-to-use, often has a swinging-bucket rotor.

3. High-Speed Centrifuge

• Speed Range: Up to 25,000 RPM

• Volume Capacity: 10–250 mL tubes or bottles

• Applications: Separation of cellular components, proteins, sub-cellular organelles.

• Features: Larger size, often refrigerated, with interchangeable rotors.

4. Ultracentrifuge

• Speed Range: Up to 100,000 RPM

• Types:

  • Analytical Ultracentrifuge: Used to study sedimentation behavior.

  • Preparative Ultracentrifuge: Used to isolate organelles, ribosomes, viruses.

• Applications: Nucleic acid and protein analysis, virus purification, lipid separation.

• Features: Precise temperature and vacuum control, often equipped with optical systems for real-time analysis.

5. Hematocrit Centrifuge

• Speed Range: 10,000–12,000 RPM

• Volume Capacity: Capillary tubes (75 mm length)

• Applications: Determining packed cell volume (hematocrit) in blood samples.

• Features: Small footprint, rapid operation, fixed-angle rotor for capillary tubes.

6. Refrigerated Centrifuge

• Speed Range: Varies (can be 3,000 to 30,000+ RPM)

• Temperature Range: –20°C to +40°C

• Applications: Handling temperature-sensitive samples like enzymes, blood, or RNA.

• Features: Integrated cooling system, available in micro, clinical, or high-speed versions.

7. Continuous Flow Centrifuge

• Speed Range: Depends on model (usually moderate to high)

• Applications: Large-volume sample processing in biotechnology and pharmaceutical industries.

• Features: Allows continuous input and output of sample and fractions; suitable for harvesting cells or proteins from fermentation broths.

8. Tabletop/Benchtop Centrifuge

• Speed Range: 2,000–15,000 RPM

• Applications: Routine separations in small labs or point-of-care setups.

• Features: Compact, versatile, available in various rotor types; some models offer refrigeration.

---

Rotor Types and Their Uses

1. Fixed-Angle Rotor:
   Tubes are held at a constant angle (25°–40°). Good for pelleting applications like cell debris or nucleic acids.

2. Swinging-Bucket Rotor:
   Tubes swing to a horizontal position during spinning. Ideal for density gradient separation (e.g., blood fractionation).

3. Vertical Rotor:
   Tubes are vertical during spin. Useful in ultracentrifugation for isopycnic separations like plasmid DNA.

---

Applications of Centrifuge

Clinical and Diagnostic Applications

• Serum and plasma separation

• Urine sediment analysis

• Hematocrit determination

• Separation of lipoproteins

Molecular Biology and Biochemistry

• Isolation of nucleic acids and proteins

• Organelle and cell fractionation

• Precipitation of macromolecules

Pharmaceutical and Food Industries

• Quality testing and product purification

• Isolation of bacteria or enzymes

• Recovery of active pharmaceutical ingredients

Environmental and Forensic Sciences

• Soil and water component analysis

• Extraction of pollutants or residues

• Separation of trace evidence in forensics

Industrial and Research Applications

• Harvesting microbial cells

• Vaccine development (e.g., virus particle concentration)

• Analytical ultracentrifugation for macromolecular characterization

---

Conclusion

The centrifuge is more than a spinning device—it is a precision tool integral to modern scientific workflows. By understanding the underlying principle, key components, and types suited to various applications, researchers can ensure effective sample separation, maintain sample integrity, and obtain high-quality results across disciplines. Whether for routine diagnostic use or high-end molecular research, choosing the appropriate centrifuge type is critical for operational efficiency and scientific accuracy.
